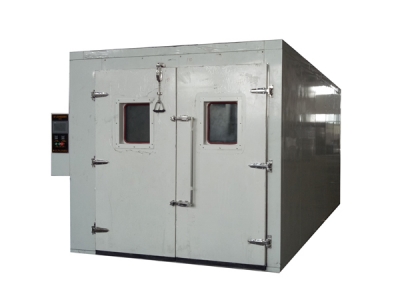

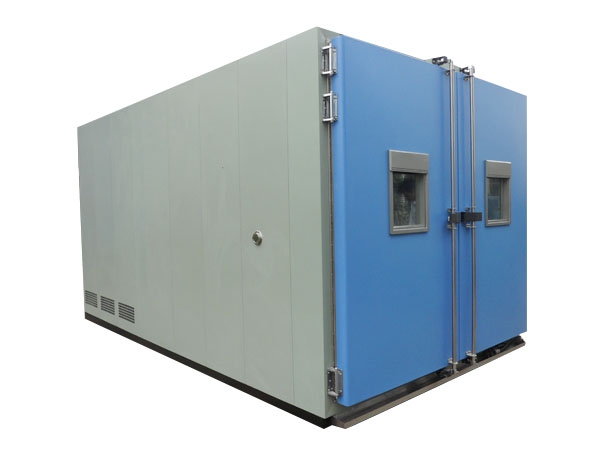

Walk-In Temperature Humidity Test Chamber

  • Climatest Symor® manufacture walk-in test chamber, It can test the performance of Electrical and Electronic parts,Machine parts,Telecommunication components,Aerospace flights by simulating the special temperature,humidity,light,etc in the atmosphere. These walk-in chambers are in pieces assembling structure, our engineer will make on-site installation and commissioning,and train customers how to operate the equipment in person.


    Application
    .Electric device
    .Automobile
    .Telecommunication system
    .Refrigerators
    .Aerospace industry
    .Packaging
    .PV industry

    Complied standards
    GB/T2423.1-2001
    GB/T2423.2-2001
    IEC60068-2-1.1990
    IEC60068-2-2.1974


    Details

    Related Technical Articles:
    Maintenance and operation of walk-in temperature humidity test chamber

  • .The inner chamber is made of SUS#304 stainless steel plate,the outer is made of A3 steel plate with painting
    .A large observation window to observe the hwoe test process
    .Double layer high temperature resistant and high-intensity sealing to ensure pefect insulation to outside
    .A test hole with diameter 25mm,or 50mm or 100mm(optional) locates on the left of the chamber
    .A reinforced fixable PU moving wheel is adopted on the bottom of the test chamber

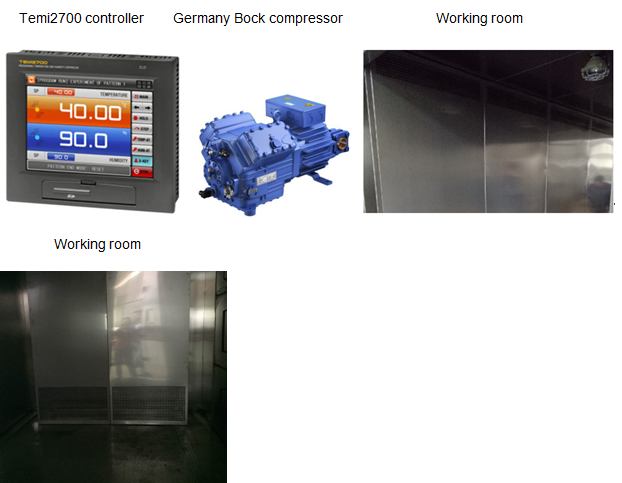

    .We adopts original South Korea imported Programmable TEMI2700 controller,there is RS-232 or RS-485 communication interface and can connect to PC for corresponding operation

  • File Name : Type: Size: Downloads:
    Walk-in temperature humidity c... PDF 104.17 KB
