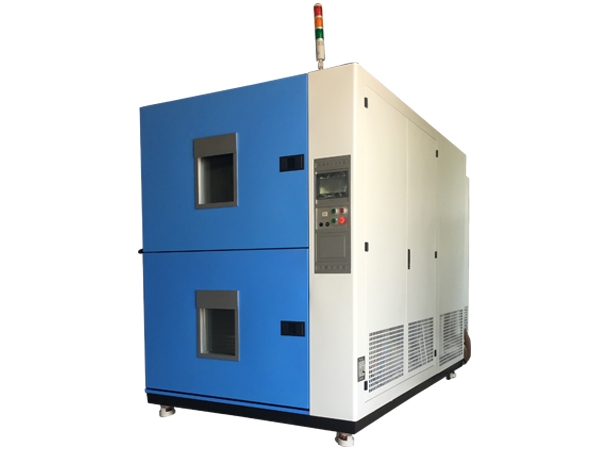

Two Zone Thermal Shock Chamber

  • Thermal Shock Chamber (2 zone type) is designed to test products’ performance to withstand continuous high low temperature cycles, the purpose is to analyze and evaluate products’ safety performance and screen unqualified ones, it can finalize products’ chemical changes/physical damage caused by heat expansion and cold contraction principle, the test is mandatory from precise ICs to mechanical parts.


    Application
    .Electronic parts  .Autoparts  .Plastic  .Aviation parts  .Military parts

    Structure


    Details
    Controller
    7” Programmable touch screen controller


    Two Zone Thermal Shock

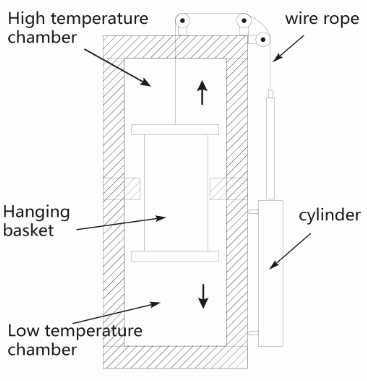

    The pneumatic basket transfers up to down-VERTICAL DIRECTION


    Two Zone Thermal Shock

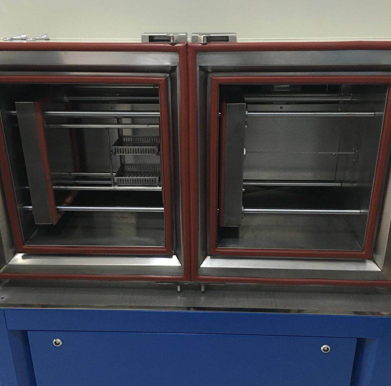

    The pneumatic basket transfers left to right-HORIZONAL DIRECTION

    Related Technical Articles:
    1.Climate Chamber Maintenance Overview
    2.How to calibrate the climatic test chamber?
    3.Quarterly maintenance of thermal shock test chamber
     4.Temperature cycle chamber for semiconductor reliability test
    5.The top three compressor brands for walk-in test chamber
    6.    Our visit to climatic test chamber distributors
    7.Reliability test for Automobile and Automobile Components
    8.How to inspect the temperature recovering time of thermal shock chamber?
  • .Working chamber anti-corrosion SUS#304 stainless steel
    .Imported Programmable touch screen controller
    .Cascade refrigeration system,France "Tecumseh" compressors and Germany “Bock” compressors
    .Large transparent viewing windows and lighting inside to observe the process
    .RS232 communication port


    Complied Standards
    GB10485-89
    GB4208-93
    GB/T4942
    IEC ISO & ASTM standards
  • Model
    TS2-162
    TS2-340
    TS2-500
    Interior Dim.
    W*D*H(mm)
    450*450*450
    600*600*600
    800*800*800
    Exterior Dim.
    W*D*H(mm)
    1350*1250*1450
    1480*1450*1700
    1700*1650*2010
    Basket Dim.
    W*D*H (mm)
    250*250
    400*400
    600*600
    Preheat Room
    Preheat Temperature
    (Upper limit)
    200°C
    Heating Time
    RT～+200°C /about 40min (unload) or customized
    Precool Room
    Precool Temperature
    (Lower limit)
    -75°C
    Cooling Time
    RT～-70°C /about 90min (unload) or customized
    Test Area
    Thermal Shock
    -20°C,-40°C,-55°C～+150°C
    Temperature Range
    Temperature Fluct.
    ≤±0.5°C
    Temperature Bias
    ≤±3.0°C
    Transfer Time & Recovery Time
    ≤15S & ≤5min
    Material
    Interior Material
    Stainless steel (SUS304)
    Exterior Material
    Double side cold rolled steel with surface painting
    Insulation Material
    Superfine fiberglass wool / polyurethane foam
    Refrigeration
    Cascade refrigeration system, Germany imported “Bock” compressor
    Controller
    Programmable controller tailor-made for thermal shock chamber
    Accessories
    Over temperature protector, halogen light, cumulative timer,castors,etc
    Safety Device
    Overload protection: compressor over-pressure protection, over-current protection, short phase protection, water shortage protection, low voltage protection, independent over-temperature protection
    Power Supply
    AC380V 50HZ/60HZ or customized
  • File Name : Type: Size: Downloads:
    Thermal shock chamber PDF 238.51 KB
