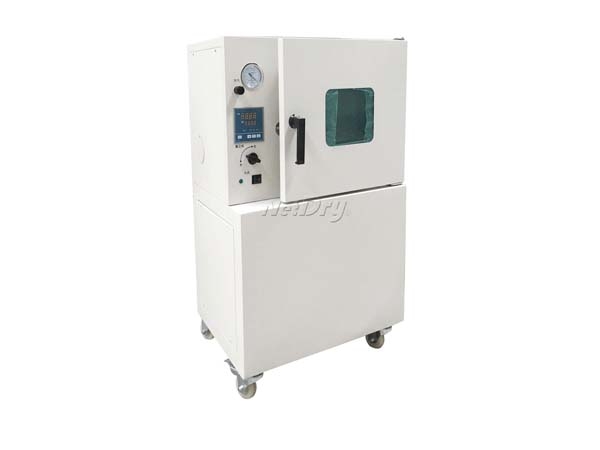

Floor-standing Vacuum Oven

  • Vertical Vacuum Oven is specially designed to dry thermo-sensitive,oxidative materials under vacuum condition in industrial and mining enterprises, laboratories, and scientific research institutes. The inner chamber can be filled with inert gases for anti-oxidation purpose.

    Climatest Symor® Vacuum Oven temperature range RT+10 °C ~ +200 °C, capacities ranging from 20 liters to 210 liters.
              LED controller

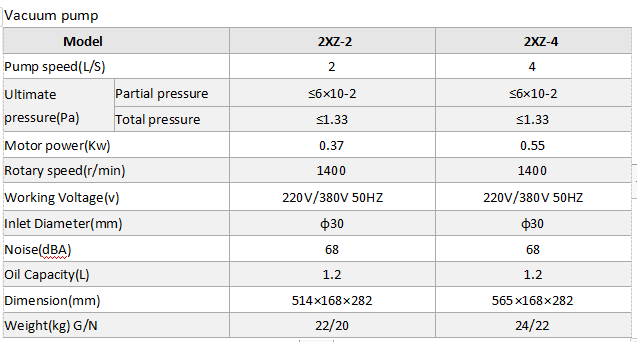

    1.Equipped with imported vacuum pump and dry filter.
    2.Model TGBV-6033B and TGBV-6063B has independent temperature control function on each shelve.

    Inert gas port

    Related Technical Articles:
    Working Principle of Vacuum Oven
    Difference between benchtop vacuum oven and vertical vacuum oven

    What is vacuum degree in vacuum oven
    Common questions and answers of vacuum oven
    Why does the vacuum oven not set the temperature uniformity parameter?

  • . Minimize heating time, 50% less than traditional vacuum oven
    . Vacuum ovens especially dry powder and pallet materials

    . The outer shell is made by reinforced steel plate with paint spraying;The working chamber is made by anti-corrosion stainless steel 304.

    . Intelligent temperature controller with PID control,Digital temperature display,timing range within 0~9999min and over-temperature alarm.

    . Double layer toughened and bulletproof glass door,larger transparent viewing window to observe specimen.

    . Door adopts silicone rubber sealing which can ensure the high vacuum degree in chamber.

    . Designed for drying gently with its homogeneous temperature distribution,it ensures optimal heat transfer and minimal spatial temperature variation.

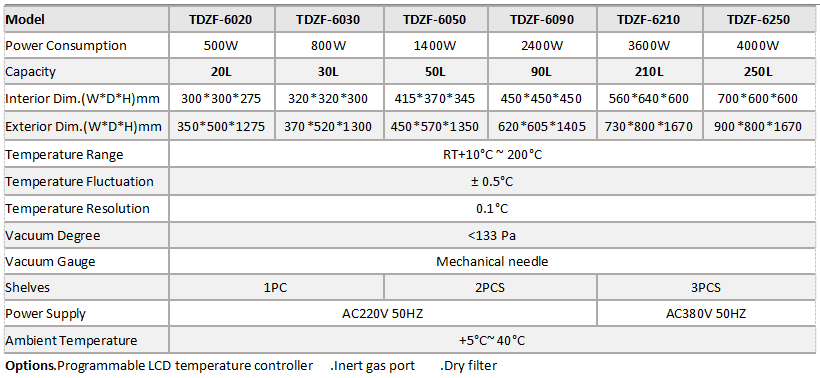

  • Floor-standing vacuum oven TDZF-6020 6030 6050 6250

    Floor-standing vacuum oven TDZF-6090 6210
  • File Name : Type: Size: Downloads:
    Drying Oven Catalog 2020 PDF 580.09 KB
    Floortypevacuumoven PDF 561.33 KB
