200 & 250 Degree C Air Forced Oven

Dry oven is a must instrument in every laboratory,with nearly 20 years efforts and innovation,Climatest now masters core technique of drying oven manufacturing,no matter temperature uniformity or temperature stability.Behind the quality is 15 years of consistent persistence,strong belief in excellence; from design to R & D to production, from promotion to sales to installation; every step reaches excellence,Climatest manufactures desktop and floor-standing models with temperature range RT+10°C-200°C,250°C,300°C,350°C,400°C,500°C, and we are able to customize as per special requirements.

200°C Dry Ovens are used to dry or temper electronic components,material tests,torrefaction, wax-melting ,high temperature aging ,preheating and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.

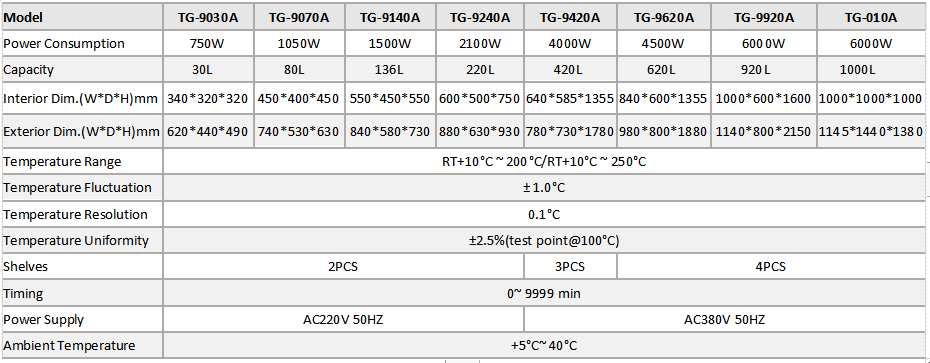

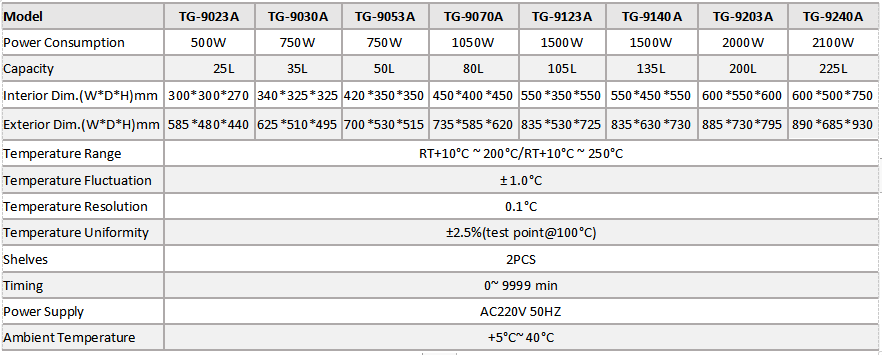

Climatest Symor® Hot Air Dry Oven temperature control is RT+10 °C ~ +200 °C, capacities range from 20L to 960L
       LED Controller

Options:
1.Programmable LCD controller
2.Temperature record printer
3.RS485/RS232 port and communication software
4.Φ25mm test hole

Workshop


Related Technical Articles:
Precision Oven and Industrial Oven
Classification of Industrial Oven
Maintenance of High Temperature Oven
Drying oven working principle
Air forced dry oven
What is the main function of hot air dry oven?
Forced convection oven
Safety use notices of forced convection dry oven(1/2)
Safety use notices of forced convection dry oven(2/2)
The development prospect of high temperature dry oven
We are serious to make dry oven
How to distinguish the quality of hot air drying oven?
Why does the vacuum oven not set the temperature uniformity parameter?
How to prolong the service life of drying oven?
500 Degree C high temperature drying oven

.Exterior chamber is made by reinforced steel with painting; working chamber made by anti-corrosion stainless steel SUS#304

.Intelligent PID control, LED controller with over-temperature alarm,timing range within 0~9999min

.Hot air circulation system composed of Germany imported low-noisy air blower and optimal air duct which ensure uniform temperature distribution

.Double layers of glass door, large transparent window to observe specimen

.Forced air convection
