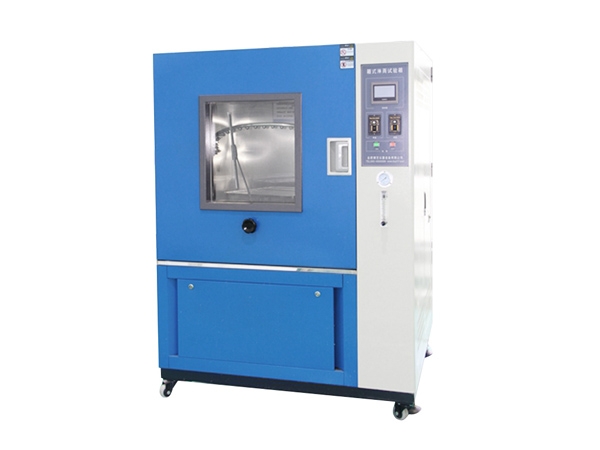

Rain Test Chamber IPX3 IPX4

Rain Test Chamber IPX3 IPX4

  • Water spray ingress test chamber is installed with oscillating tubes to spray water onto products by following IEC60529 standard, it tests and evaluates the protection degree provided by the products’ outer shell, this identified protection level against water ingress is called IP code.

    Complied standards
    .GB10485-89

    .GB4208-93
    .GB/T4942
    .Corresponding IEC ISO & ASTM standards

    Details



  • .Interior chamber made by stainless steel sus#304
    .Large observation window to monitor test status

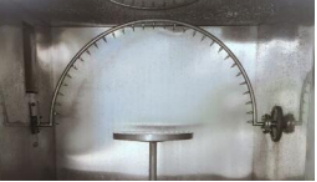

    .180° Oscillating tube and 360° spinner handle as water spraying device
    .Rotating turntable

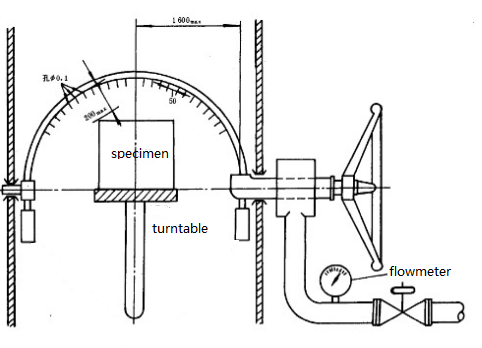

    Working principle
